OSV-010
    Publish time 2025-08-21 09:19

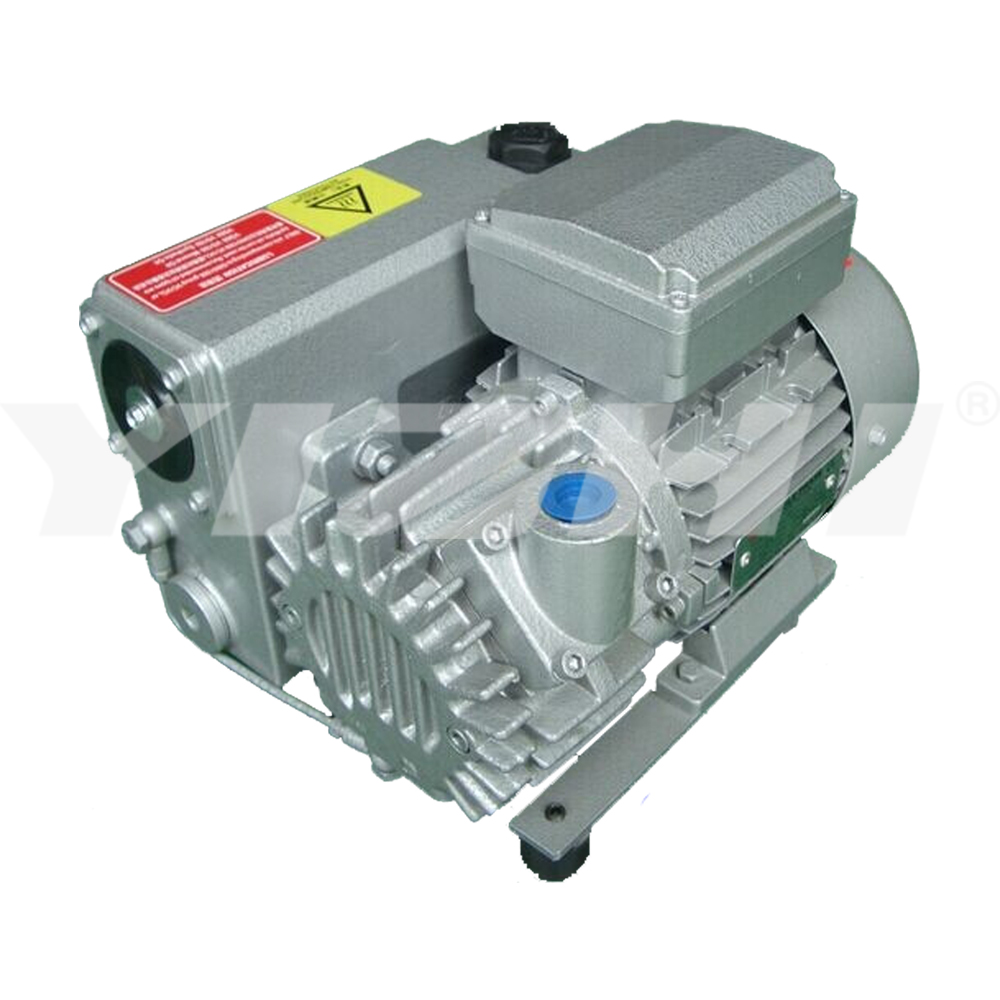

OSV-010
Technical Data                         OSV-010
Nominal pumping speed10 / 12 m³/h (50 / 60 Hz)
Ultimate pressure200 Pa (50 / 60 Hz)
Nominal motor rating0.55 / 0.63 kW (50 / 60 Hz)
Nominal motor speed2800/3300 RPM(50 / 60 Hz)
Noise level (ISO 2151)60 / 64 dB(A) (50 / 60 Hz)
Oil capacity0.3 l
Weight approx.18 kg (50 / 60 Hz)
Dimension340*210*205
Gas inlet / outletG 1/2" or G3/4"
