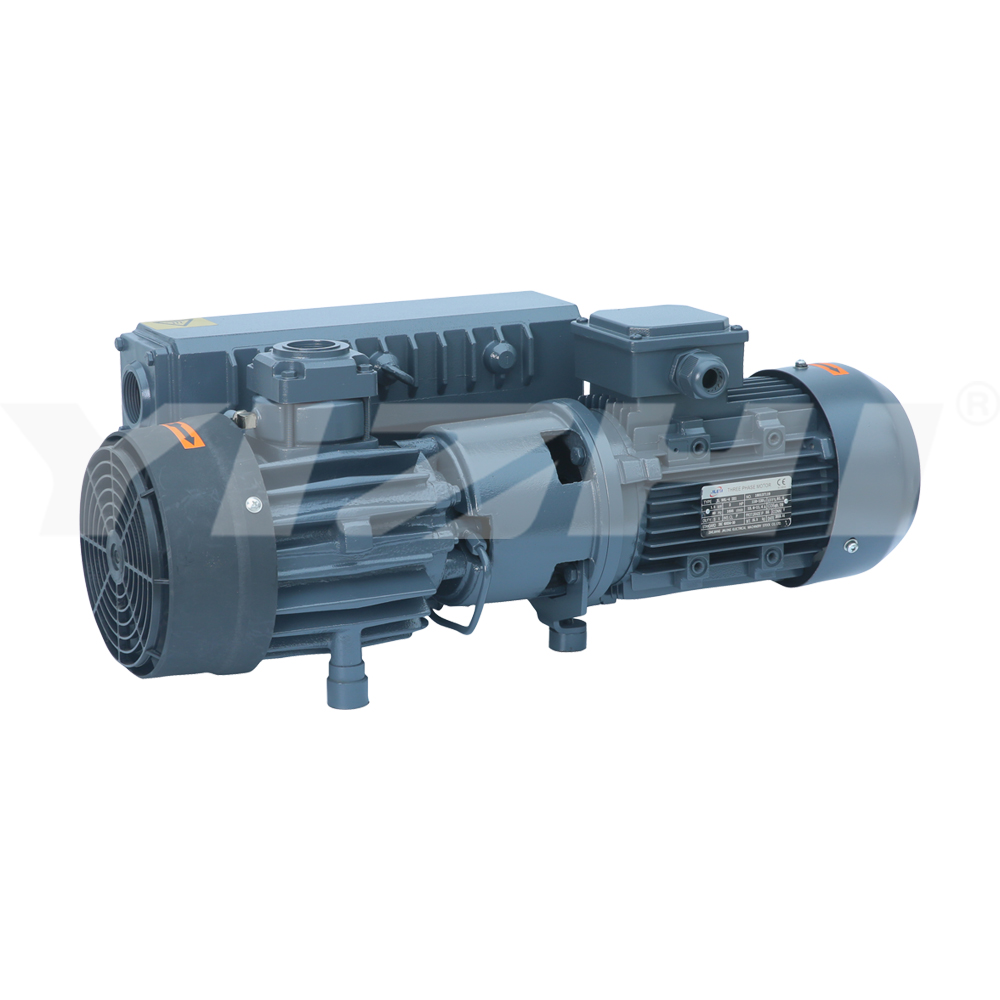

OSV-040
    Publish time 2025-08-21 09:20
OSV-040


Technical Data                         OSV-040
Nominal pumping speed40 / 48 m³/h (50 / 60 Hz)
Ultimate pressure50 Pa (50 / 60 Hz)
Nominal motor rating1.5 / 1.75 kW (50 / 60 Hz)
Nominal motor speed1400/1700 RPM(50 / 60 Hz)
Noise level (ISO 2151)63 / 66 dB(A) (50 / 60 Hz)
Oil capacity1.0 l
Weight approx.48 kg (50 / 60 Hz)
Dimension660*300*270
Gas inlet / outletG 1 1/4"
