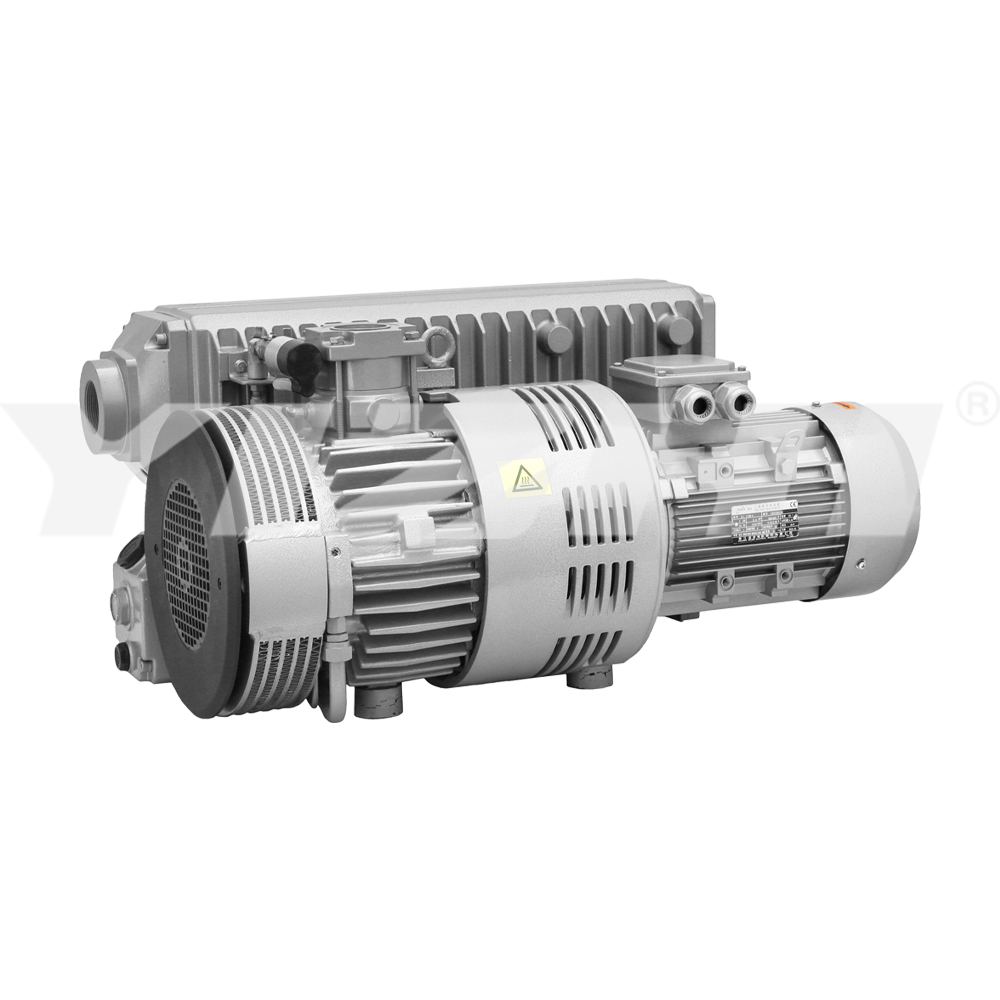

OSV-160
    Publish time 2025-08-21 09:24
OSV-160


Technical Data                         OSV-160
Nominal pumping speed160 / 190 m³/h (50 / 60 Hz)
Ultimate pressure50 Pa (50 / 60 Hz)
Nominal motor rating4.0 / 4.6 kW (50 / 60 Hz)
Nominal motor speed1400/1700 RPM(50 / 60 Hz)
Noise level (ISO 2151)72 / 74 dB(A) (50 / 60 Hz)
Oil capacity4.5 l
Weight approx.152 kg (50 / 60 Hz)
Dimension805*520*410
Gas inlet / outletG 2"
