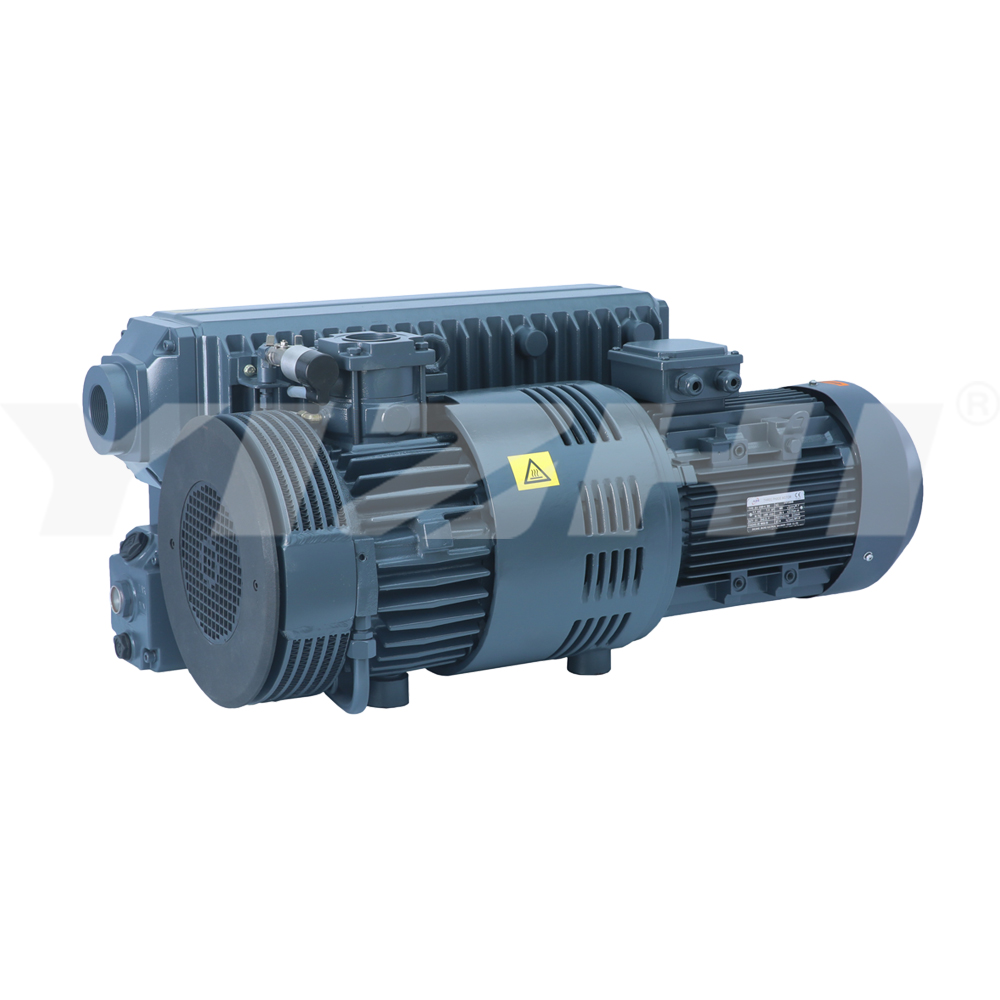

OSV-200
    Publish time 2025-08-21 09:24
OSV-200



Technical Data                         OSV-200
Nominal pumping speed200 / 240 m³/h (50 / 60 Hz)
Ultimate pressure50 Pa (50 / 60 Hz)
Nominal motor rating5.5 / 6.3 kW (50 / 60 Hz)
Nominal motor speed1400/1700 RPM(50 / 60 Hz)
Noise level (ISO 2151)74 / 76 dB(A) (72 / 75 Hz)
Oil capacity4.5 l
Weight approx.159 kg (50 / 60 Hz)
Dimension825*520*410
Gas inlet / outletG 2"
